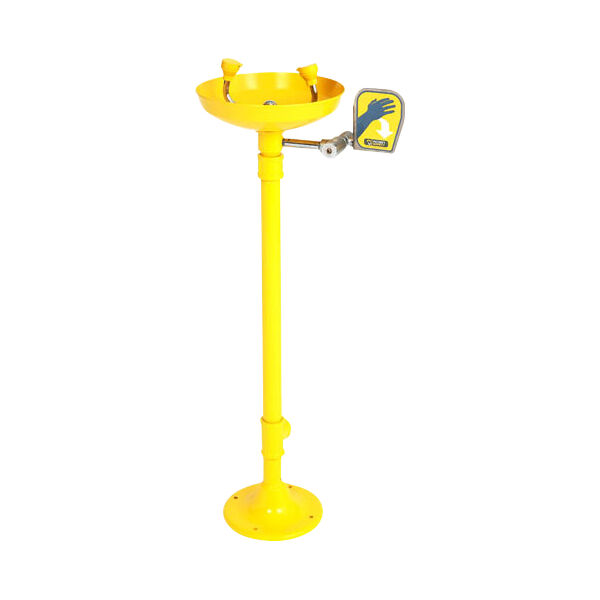

Model EWS480 is a pedestal mounted eye/face wash, with a plastic bowl, ABS plastic eye/face wash spray heads, an inline strainer and a stay-open 1/2inch ball valve with a push handle.
Technical Details


  • Spray Head Assembly: ABS yellow plastic eye/face wash heads with integral flip dust covers, internal flow controls and filters to remove debris from the water

  • An anti-microbial agent is molded into the ABS material, providing integrated protection

  • Valve: 1/2inch NPT chrome plated brass stay-open ball valve with a stainless steel push handle and a 50 mesh inline strainer

  • Water Supply: 1/2inch NPT female threaded, chrome plated brass inlet

  • Waste: 1-1/4inch NPT female outlet

  • Bowl: Yellow, ABS plastic 11-3/4inch diameter bowl

  • Piping & Mounting: Schedule 40 galvanized steel piping and a 9-1/8inch diameter cast iron floor flange with a yellow powder coated finish

  • Universal Sign: ANSI compliant, vertical identification sign

  • Weekly Test Tag: A waterproof test card to record the date and inspector?s name for weekly functional testing of the unit

(MAXS-EWS480)

SKU MAXS-EWS480
Brand Maxisafe
Type Workplace Safety
