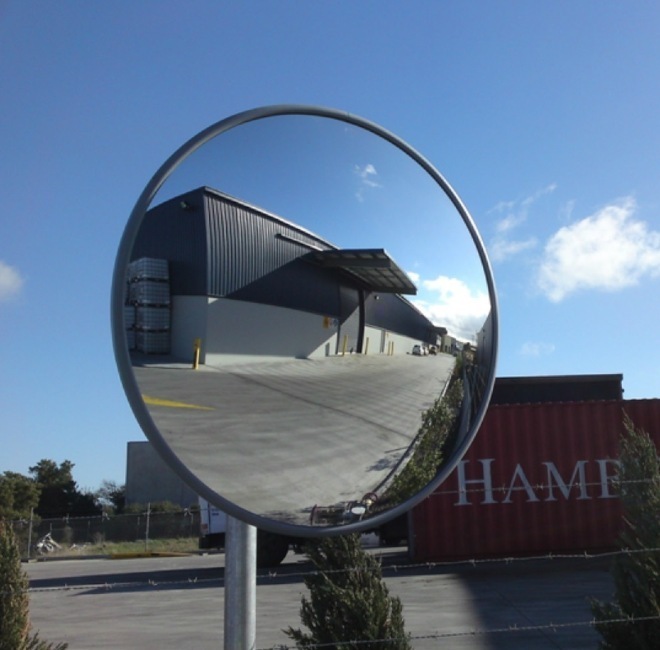

This is our general-purpose outdoor stainless steel convex mirror for vandal prone areas or situations where projectile objects are a risk.

Designed for all applications where a robust unbreakable mirror is required, including industrial applications such as monitoring machinery where breakage is unacceptable.

Supplied standard with Celuka back and wall mounting bracket but has an optional U-bolt kit for pole mounting.



What is Celuka?

Celuka is a PVC based material. It is rot-proof, will not warp and is UV stable. Celuka board is extremely lightweight, water-resistant, has low thermal conductivity and is widely used in the graphics and building industry.

We use 10mm thick sheets for our outdoor mirrors providing a robust and durable frame that will last many years.


Can I mount the mirror vertically?

All our mirrors are designed to be as universal and simple to install as possible.

Yes, with the J-Bracket the mirror can be mounted in either orientation.

The length of the arm is equal to at least the radius of the mirror so that the mirror can be adjusted to any angle without hitting the wall or ceiling.


What size mirror should I use?

or outdoor applications the mirror needs to be larger than for indoor applications but as a general rule, the combined distance between the mirror and the observer and the distance between the mirror and the object to be viewed will determine the correct size mirror. Always choose a slightly larger rather than a smaller mirror. If the mirror is too small then the image it produces will be of little value but if the mirror is slightly larger than required, you only get more and an enhanced view!

  • Under 3 metres Use 300 or 450mm mirror
  • Combined distance 3 to 5 metres Use 45 or 600mm mirror
  • Combined distance 5 to 10 metres Use 60 or 760mm mirror
  • Combined distance 10 to 15 metres Use 76 or 90mm mirror
  • Over 15 metres use the 900m or larger for best observation



Typical Uses
Vandal prone driveways, car parks and pedestrian walkways
Industrial areas at risk of projectile objects
Warehouses and loading bays where the mirror is at risk of being knocked by large machinery
Child Care Centres - Observation of children around playgrounds

Features

  • Five Year Manufacturer Warranty against faulty workmanship and materials
  • All weather double sealed mirror
  • Fully framed mirror with 10mm Celuka rot-proof frame
  • Mirror face manufactured from .9mm or 1mm 'optical grade' stainless steel
  • Zinc Plated Steel Fittings
  • Super Strong J-Bracket fitting provides superior adjustment and rigidity
  • (4 hole) mounting - suitable for fixing to flat surfaces
  • Easy installation - low maintenance

(AC-160-445S)

SKU AC-160-445S
