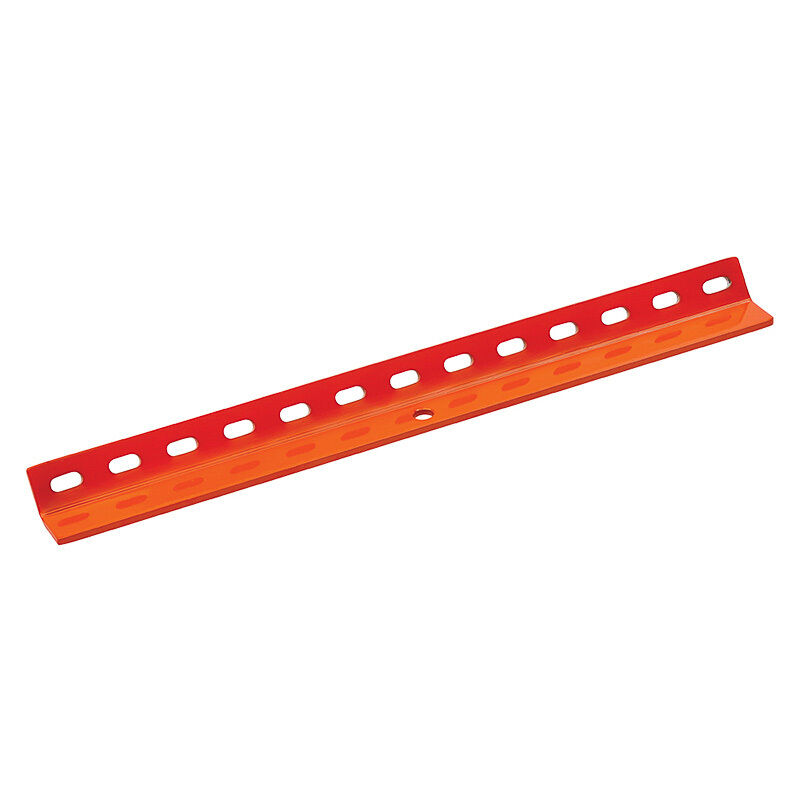

The LINQ Anchor Tetha V-Bar temporary anchor plates are engineered for extreme workplace situations.

Boasting a minimum breaking strength of 22kN, the range has been developed to be a durable and efficient temporary roof line anchor system.

(It is important to ensure that the structure to which any LINQ Tetha anchor plate is installed, has sufficient strength (refer to ASNZS 1891.4) to sustain the applied load.)

An affordable temporary and reusable alternative to installation of a permanent purlin style anchor

Compact design and lightweight materials provide a tried and tested safety solution

Rated for up to a 140kg user

Can withstand fall arrest forces up to 22kN (It is important to ensure that the structure to which any LINQ Tetha anchor plate is installed, has sufficient strength (refer to ASNZS 1891.4) to sustain

The Tetha T-Bar has an easy to use double tie off L-screw and wing nut applicator that clips onto the roof edge (for suitable profiles only)

Can be used as a temporary anchor point in applications along a roof line where no permanent anchor point exists.

Quick installation and removal. (Installation should always be conducted by a competent person as described in ASNZS 1891.4)

Provides safe 360° work area

For use on metal or tile roofs

500mm used for Trimdeck or Custom Orb roofs

Conforms to ASNZS 1891.4 requirements

(PARA-HSTBS500)

SKU PARA-HSTBS500
Barcode # 9332881024037
Brand Linq
Shipping Weight 1.2500kg
Shipping Width 0.015m
Shipping Height 1.000m
Shipping Length 0.053m
Assembled Length 0.053m
Assembled Height 1.000m
Assembled Width 0.015m
